Implements linux aspects of CMOOSSerialPort. More...

#include <MOOSLinuxSerialPort.h>

Inheritance diagram for CMOOSLinuxSerialPort:

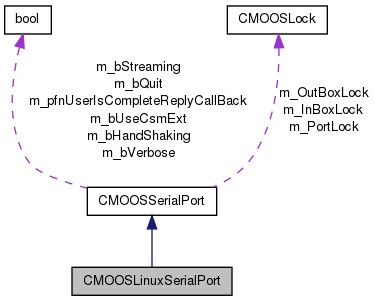

Collaboration diagram for CMOOSLinuxSerialPort:

Public Member Functions
virtual bool	Close ()
	CMOOSLinuxSerialPort ()
virtual	~CMOOSLinuxSerialPort ()
virtual bool	Create (const char *pPortNum=DEFAULT_PORT, int nBaudRate=DEFAULT_BAUDRATE)
int	Write (const char Str, int nLen, double pTime=NULL)
virtual void	Break ()
virtual int	Flush ()
int	GetFD ()
Protected Member Functions
virtual int	GrabN (char *pBuffer, int nRequired)
Protected Attributes
int	m_nPortFD
struct termios	m_OldPortOptions
struct termios	m_PortOptions

Detailed Description

Implements linux aspects of CMOOSSerialPort.

Definition at line 59 of file MOOSLinuxSerialPort.h.

Constructor & Destructor Documentation

CMOOSLinuxSerialPort::CMOOSLinuxSerialPort ( )

constructor.

Definition at line 43 of file MOOSLinuxSerialPort.cpp.

CMOOSLinuxSerialPort::~CMOOSLinuxSerialPort ( ) [virtual]

Destructor.Reset the port option to what every they were before and close port

Definition at line 50 of file MOOSLinuxSerialPort.cpp.

Member Function Documentation

void CMOOSLinuxSerialPort::Break ( ) [virtual]

send break signal

The ability to send a Break signal (~.5sec of tying the TX pin low) in Linux

Reimplemented from CMOOSSerialPort.

Definition at line 214 of file MOOSLinuxSerialPort.cpp.

bool CMOOSLinuxSerialPort::Close ( void ) [virtual]

Reimplemented from CMOOSSerialPort.

Definition at line 252 of file MOOSLinuxSerialPort.cpp.

bool CMOOSLinuxSerialPort::Create	(	const char *	sPort = `DEFAULT_PORT`,
		int	nBaudRate = `DEFAULT_BAUDRATE`
	)		`[virtual]`

Create and set up the port

Implements CMOOSSerialPort.

Definition at line 56 of file MOOSLinuxSerialPort.cpp.

int CMOOSLinuxSerialPort::Flush ( void ) [virtual]

Call this method in order to free the Output Buffer of any characters that may not have been sent during our last write. We use the queue_selector TCOFLUSH.
