#include <MOOSCommServer.h>

Inheritance diagram for CMOOSCommServer:

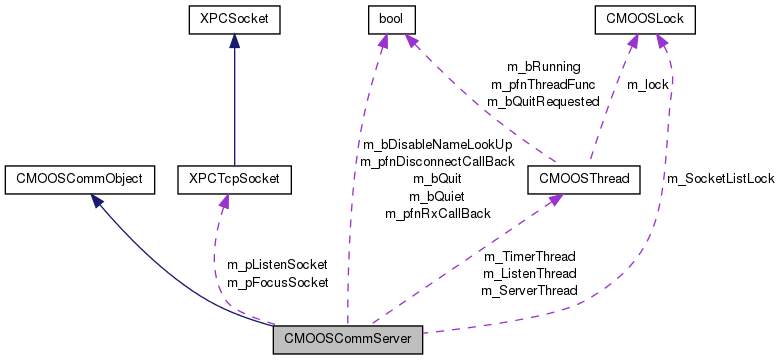

Collaboration diagram for CMOOSCommServer:

Public Types
typedef std::list< XPCTcpSocket * >	SOCKETLIST
typedef std::map< int, std::string >	SOCKETFD_2_CLIENT_NAME_MAP
typedef std::list< std::string >	STRING_LIST
Public Member Functions
bool	GetClientNames (STRING_LIST &sList)
void	SetOnRxCallBack (bool(pfn)(const std::string &sClient, MOOSMSG_LIST &MsgListRx, MOOSMSG_LIST &MsgListTx, void pParam), void *pParam)
void	SetOnDisconnectCallBack (bool(pfn)(std::string &sClient, void pParam), void *pParam)
bool	ListenLoop ()
bool	ServerLoop ()
bool	TimerLoop ()
bool	Run (long lPort, const std::string &sCommunityName, bool bDisableNameLookUp=false)
void	SetQuiet (bool bQ)
	CMOOSCommServer ()
	default constructor
virtual	~CMOOSCommServer ()
	default destructor
Protected Member Functions
int	GetMaxSocketFD ()
virtual void	DoBanner ()
std::string	GetClientName (XPCTcpSocket *pSocket)
void	PoisonClient (XPCTcpSocket *pSocket, const std::string &sReason)
bool	HandShake (XPCTcpSocket *pNewSocket)
bool	IsUniqueName (std::string &sClientName)
virtual bool	OnClientDisconnect ()
	called when a client disconnects or and error occurs
virtual bool	OnAbsentClient (XPCTcpSocket *pClient)
	called when a client goes quiet...
virtual bool	OnNewClient (XPCTcpSocket pNewClient, char sName)
virtual bool	ProcessClient ()
bool	StartThreads ()
	called from init to start the listen and server threads up
Protected Attributes
CMOOSLock	m_SocketListLock
int	m_nTotalActions
	internal count of the number of calls processed
CMOOSThread	m_ListenThread
CMOOSThread	m_ServerThread
CMOOSThread	m_TimerThread
bool(*	m_pfnRxCallBack )(const std::string &sClient, MOOSMSG_LIST &MsgListRx, MOOSMSG_LIST &MsgListTx, void *pCaller)
void *	m_pRxCallBackParam
bool(*	m_pfnDisconnectCallBack )(std::string &sClient, void *pParam)
void *	m_pDisconnectCallBackParam
XPCTcpSocket *	m_pListenSocket
XPCTcpSocket *	m_pFocusSocket
SOCKETLIST	m_ClientSocketList
SOCKETFD_2_CLIENT_NAME_MAP	m_Socket2ClientMap
long	m_lListenPort
	port listen socket is bound to
bool	m_bQuit
	threads continue while this flag is false
int	m_nMaxSocketFD
	largest FD of all connected sockets
bool	m_bDisableNameLookUp
	flag to say don't bother with name look up
std::string	m_sCommunityName
	name of community being served
bool	m_bQuiet
	how quiet are we

Detailed Description

This class is the MOOS Comms Server. It lies at the heart of the communications architecture and typically is of no interest to the component developer. It maintains a list of all the connected clients and their names. It simultaneously listens on all sockets for calling clients and then calls a user supplied call back to handle the request. This class is only used by the CMOOSDB application

Definition at line 68 of file MOOSCommServer.h.

Member Typedef Documentation

typedef std::map<int,std::string > CMOOSCommServer::SOCKETFD_2_CLIENT_NAME_MAP

Definition at line 72 of file MOOSCommServer.h.

typedef std::list<XPCTcpSocket*> CMOOSCommServer::SOCKETLIST

Definition at line 71 of file MOOSCommServer.h.

typedef std::list<std::string > CMOOSCommServer::STRING_LIST

Definition at line 73 of file MOOSCommServer.h.

Constructor & Destructor Documentation

CMOOSCommServer::CMOOSCommServer ( )

default constructor

Definition at line 107 of file MOOSCommServer.cpp.

CMOOSCommServer::~CMOOSCommServer ( ) [virtual]

default destructor

Definition at line 117 of file MOOSCommServer.cpp.

Member Function Documentation

void CMOOSCommServer::DoBanner ( ) [protected, virtual]

prints class information banner to stdout

Definition at line 737 of file MOOSCommServer.cpp.

string CMOOSCommServer::GetClientName ( XPCTcpSocket * pSocket ) [protected]

Get the name of the client on the remote end of pSocket

Definition at line 719 of file MOOSCommServer.cpp.

bool CMOOSCommServer::GetClientNames ( STRING_LIST & sList )

Definition at line 770 of file MOOSCommServer.cpp.

int CMOOSCommServer::GetMaxSocketFD ( ) [protected]

figures out what the largest socket FD of all connected sockets. (needed by select)

Definition at line 753 of file MOOSCommServer.cpp.

bool CMOOSCommServer::HandShake ( XPCTcpSocket * pNewSocket ) [protected]

Perform handshaling with client just after a connection has been accepted

Definition at line 659 of file MOOSCommServer.cpp.

bool CMOOSCommServer::IsUniqueName ( std::string & sClientName ) [protected]

returns true if a server has no connection to the named client

Parameters:

sClientName reference to client name std::string

Definition at line 622 of file MOOSCommServer.cpp.

bool CMOOSCommServer::ListenLoop ( )

This function is the listen loop called from one of the two server threads. It is responsible for accepting a coonection and creating a new client socket.

Definition at line 236 of file MOOSCommServer.cpp.

bool CMOOSCommServer::OnAbsentClient ( XPCTcpSocket * pClient ) [protected, virtual]

called when a client goes quiet...

Definition at line 194 of file MOOSCommServer.cpp.

bool CMOOSCommServer::OnClientDisconnect ( ) [protected, virtual]

called when a client disconnects or and error occurs

Definition at line 555 of file MOOSCommServer.cpp.

bool CMOOSCommServer::OnNewClient	(	XPCTcpSocket *	pNewClient,
		char *	sName
	)		`[protected, virtual]`

Called when a new client connects. Performs handshaking and adds new socket to m_ClientSocketList

Parameters:

pNewClient pointer to the new socket created in ListenLoop;

See also:: ListenLoop

Definition at line 516 of file MOOSCommServer.cpp.

void CMOOSCommServer::PoisonClient	(	XPCTcpSocket *	pSocket,
		const std::string &	sReason
	)		`[protected]`

Send a Poisoned mesasge to the client on the end of pSocket. This may cause the client comms thrad to die

Definition at line 712 of file MOOSCommServer.cpp.

bool CMOOSCommServer::ProcessClient ( ) [protected, virtual]

called from Server loop this function handles all the processing for the current client call. It inturn invokes the user supplied callback function

Definition at line 447 of file MOOSCommServer.cpp.

bool CMOOSCommServer::Run	(	long	lPort,
		const std::string &	sCommunityName,
		bool	bDisableNameLookUp = `false`
	)

Initialise the server. This is a non blocking call and launches the MOOS Comms server threads.

Parameters:

lPort port number to listen on

bool CMOOSCommServer::ServerLoop ( )

This function is the server loop called from one of the two server threads. It listens to all presently connected sockets and when a call is received invokes thse user supplied callback

Definition at line 329 of file MOOSCommServer.cpp.

void CMOOSCommServer::SetOnDisconnectCallBack	(	bool()(std::string &sClient, void pParam)	pfn,
		void *	pParam
	)

Set the disconnect message call back handler. The supplied call back must be of the form static bool MyCallBack(std::string & sClient,, void * pParam).

Parameters:

sClient	Name of client at the end of the socket sending this Pkt
pParam	user suplied parameter to be passed to callback function

Definition at line 206 of file MOOSCommClient.cpp.

void CMOOSCommServer::SetOnRxCallBack	(	bool()(const std::string &sClient, MOOSMSG_LIST &MsgListRx, MOOSMSG_LIST &MsgListTx, void pParam)	pfn,
		void *	pParam
	)

Set the recieve message call back handler. The callback will be called whenever a client sends one or more messages to the server. The supplied call back must be of the form static bool MyCallBack(MOOSMSG_LIST & RxLst,MOOSMSG_LIST & TxLst, void * pParam).

Parameters:

sClient	Name of client at the end of the socket sending this Pkt
RxLst	contains the incoming messages.
TxLst	passed to the handler as a recepticle for all the message that should be sent back to the client in response to the incoming messages.
pParam	user suplied parameter to be passed to callback function

Definition at line 601 of file MOOSCommServer.cpp.

void CMOOSCommServer::SetQuiet ( bool bQ ) [inline]

used to control how verbose the server is. Setting to true turns off all Tracing

Definition at line 115 of file MOOSCommServer.h.

bool CMOOSCommServer::StartThreads ( ) [protected]

called from init to start the listen and server threads up

Definition at line 85 of file MOOSCommServer.cpp.

bool CMOOSCommServer::TimerLoop ( )

This function is the timer loop called from one of the three server threads. It makes sure all clients speak occasionally

Definition at line 143 of file MOOSCommServer.cpp.
