CHTTPConnection Class Reference

#include <HTTPConnection.h>

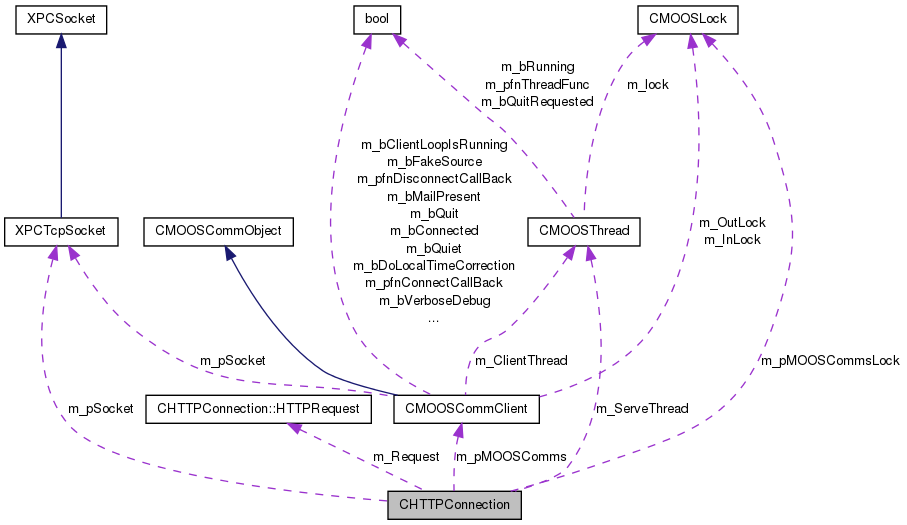

Collaboration diagram for CHTTPConnection:

List of all members.

Classes
struct	HTTPRequest
Public Member Functions
	CHTTPConnection (XPCTcpSocket *pNewSocket, CMOOSCommClient *pMOOSComms, CMOOSLock *pMOOSCommsLock)
bool	Run ()
bool	HasCompleted ()
Static Public Member Functions
static bool	_CB (void *pParam)
Protected Member Functions
bool	Serve ()
bool	MakeWebPage ()
bool	SendHeader ()
bool	SendFailureHeader ()
bool	SendWebPage ()
bool	HandlePoke (std::string sPokeURL)
bool	BuildSingleVariableWebPageContents (std::ostringstream &wp, MOOSMSG_LIST &MsgList)
bool	BuildFullDBWebPageContents (std::ostringstream &wp, MOOSMSG_LIST &MsgList)
bool	ReadRequest ()
bool	ReadLine (std::string &)
void	SendLine (std::string sLine)
void	SendString (std::string sLine)
Protected Attributes
std::string	m_sWebPage
CMOOSThread	m_ServeThread
XPCTcpSocket *	m_pSocket
std::string	m_sFocusVariable
HTTPRequest	m_Request
CMOOSCommClient *	m_pMOOSComms
CMOOSLock *	m_pMOOSCommsLock

---

Detailed Description

Definition at line 19 of file HTTPConnection.h.

---

Constructor & Destructor Documentation

CHTTPConnection::CHTTPConnection	(	XPCTcpSocket *	pNewSocket,
		CMOOSCommClient *	pMOOSComms,
		CMOOSLock *	pMOOSCommsLock
	)

simple constructor

Definition at line 94 of file HTTPConnection.cpp.

---

Member Function Documentation

static bool CHTTPConnection::_CB

(

void *

pParam

)

[inline, static]

call back to allow Serve to run in MOOSThread

Definition at line 135 of file HTTPConnection.h.

bool CHTTPConnection::BuildFullDBWebPageContents	(	std::ostringstream &	wp,
		MOOSMSG_LIST &	MsgList
	)		[protected]

build we page of whole DB

Definition at line 492 of file HTTPConnection.cpp.

bool CHTTPConnection::BuildSingleVariableWebPageContents	(	std::ostringstream &	wp,
		MOOSMSG_LIST &	MsgList
	)		[protected]

Definition at line 430 of file HTTPConnection.cpp.

bool CHTTPConnection::HandlePoke

(

std::string

sPokeURL

)

[protected]

respond to someone putting data

Definition at line 307 of file HTTPConnection.cpp.

bool CHTTPConnection::HasCompleted

(

)

has the connection terminated?

Definition at line 605 of file HTTPConnection.cpp.

bool CHTTPConnection::MakeWebPage

(

)

[protected]

Makes a webpage

Definition at line 357 of file HTTPConnection.cpp.

bool CHTTPConnection::ReadLine

(

std::string &

sLine

)

[protected]

read a single line from client

Definition at line 235 of file HTTPConnection.cpp.

bool CHTTPConnection::ReadRequest

(

)

[protected]

read a request header

Definition at line 158 of file HTTPConnection.cpp.

bool CHTTPConnection::Run

(

)

start the connection processing...

Definition at line 102 of file HTTPConnection.cpp.

bool CHTTPConnection::SendFailureHeader

(

)

[protected]

Sends a 404 error header

Definition at line 587 of file HTTPConnection.cpp.

bool CHTTPConnection::SendHeader

(

)

[protected]

Sends an all OK header detailing length of page to follow

Definition at line 596 of file HTTPConnection.cpp.

void CHTTPConnection::SendLine

(

std::string

sLine

)

[protected]

lower level send string with appended

Definition at line 220 of file HTTPConnection.cpp.

void CHTTPConnection::SendString

(

std::string

sLine

)

[protected]

lower level send string (no line feed cr appended)

Definition at line 228 of file HTTPConnection.cpp.

bool CHTTPConnection::SendWebPage

(

)

[protected]

Send the webpage itself

Definition at line 276 of file HTTPConnection.cpp.

bool CHTTPConnection::Serve

(

)

[protected]

main sequence of response actions

Definition at line 112 of file HTTPConnection.cpp.

---

Member Data Documentation

CMOOSCommClient* CHTTPConnection::m_pMOOSComms [protected]

pointer to a COmms Client (The DB Connection is shared between all HTTPConnections)

Definition at line 184 of file HTTPConnection.h.

CMOOSLock* CHTTPConnection::m_pMOOSCommsLock [protected]

pointer to a lock which provides protected access to the MOOS comms client object

Definition at line 187 of file HTTPConnection.h.

XPCTcpSocket* CHTTPConnection::m_pSocket [protected]

Socket which hold the Connection

Definition at line 175 of file HTTPConnection.h.

HTTPRequest CHTTPConnection::m_Request [protected]

A HTTP Request instantiation

Definition at line 181 of file HTTPConnection.h.

CMOOSThread CHTTPConnection::m_ServeThread [protected]

Thread object which runs the servicing sequence of commands

Definition at line 173 of file HTTPConnection.h.

std::string CHTTPConnection::m_sFocusVariable [protected]

name of focus variable (empty for whole site request)

Definition at line 178 of file HTTPConnection.h.

std::string CHTTPConnection::m_sWebPage [protected]

string containing the webpage iteself

Definition at line 171 of file HTTPConnection.h.

---

The documentation for this class was generated from the following files:

• /home/toby/moos-ivp/MOOS-2375-Oct0611/Core/MOOSDB/HTTPConnection.h
• /home/toby/moos-ivp/MOOS-2375-Oct0611/Core/MOOSDB/HTTPConnection.cpp
