goby-zeromq: goby_gps

The goby_gps application publishes data from the widely used GPS server, gpsd. It does not directly read data from the NMEA-0183 serial stream of the GPS. While this slightly increases the complexity of setup, the benefits of serving GPS data using gpsd usually outweighs the drawback of this additional application. For example, NTP and Chronyd can directly receive GPS data from gpsd and correct the system time based on the GPS time.

gpsd

gpsd has comprehensive documentation of its own, so there's no need to duplicate that information here.

For Debian/Ubuntu systems, setting up gpsd is usually as simple as:

sudo apt install gpsd

and then editing /etc/default/gpsd to specify your GPS devices. For example, if your GPS is connected to the serial port /dev/ttyS0, you would change the DEVICES line to read:

DEVICES="/dev/ttyS0"

Then reboot or do a

sudo systemctl restart gpsd

It is very helpful to check that GPS data is correctly coming into gpsd using one of the various tools, such as cgps:

sudo apt install  gpsd-tools
cgps

If you see valid time, latitude, longitude, etc., then gpsd is set up correctly. If not, check your serial port and consider directly examining the NMEA traffic using minicom or a similar tool.

goby_gps

goby_gps is a client for GPSD using the TCP / JSON protocol.

Upon startup goby_gps connects to gpsd using a TCP client and then sends a WATCH command to gpsd to enable streaming of GPS data.

goby_gps handles three types of gpsd data: TPV (time-position-velocity), SKY (sky view of the GPS satellites), and ATT (vehicle attitude). These are converted from JSON into equivalent Protocol Buffers messages and published on the ZeroMQ interprocess layer.

GPSD Message	Protobuf Message	Goby Group
TPV	goby::middleware::protobuf::gpsd::TimePositionVelocity	goby::middleware::groups::gpsd::tpv
SKY	goby::middleware::protobuf::gpsd::SkyView	goby::middleware::groups::gpsd::sky
ATT	goby::middleware::protobuf::gpsd::Attitude	goby::middleware::groups::gpsd::att

The groups are defined in:

#include <goby/middleware/gpsd/groups.h>

and the Protobuf messages are in goby/src/middleware/protobuf/gpsd.proto and can be included using:

#include <goby/middleware/protobuf/gpsd.pb.h>

If you're only interested in position data, you can simply subscribe to the TPV data from another ZeroMQ-based application:

#include <goby/middleware/gpsd/groups.h>
#include <goby/middleware/protobuf/gpsd.pb.h>

//...

interprocess().subscribe<goby::middleware::groups::gpsd::tpv>(
        [this](const goby::middleware::protobuf::gpsd::TimePositionVelocity& tpv) {
        std::cout << "Latitude: " << tpv.location().lat() << std::endl;
        std::cout << "Longitude: " << tpv.location().lon() << std::endl;
 });

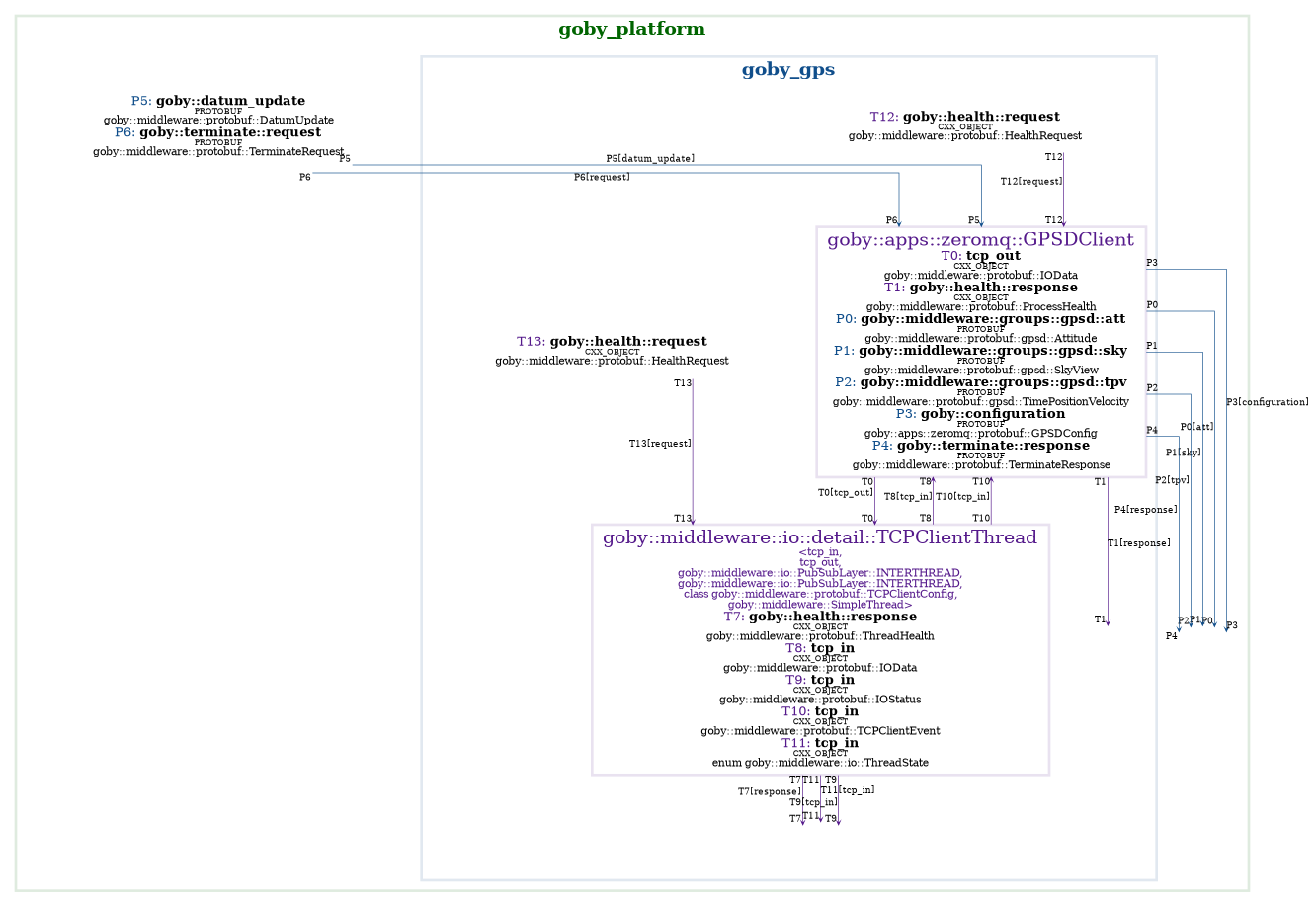

Publish/Subscribe API Diagram
